Opus 67

Camelback Bible Church

Paradise Valley, AZ

Stops: 27
Independent Voices: 25
Created: 2024

Print this page

Opus 67 was originally installed in Central Christian Church, Huntington, Indiana, in 1976. Commissioned to serve as the sanctuary centerpiece of a brand-new church building, it was one of the first organs Charles Fisk designed and voiced after his 1974 research trip to East Germany; during this expedition behind the Iron Curtain, Charles’s organ-building vision expanded irrevocably thanks to the sounds of the Gottfried Silbermann instruments he heard and documented.

In 2020 we were contacted by the Huntington church leadership; they wanted the organ removed. It had stood silent for years and was neither needed nor wanted. In 2022 an enthusiastic buyer was found, and the improbable story of Opus 67’s resurrection began. The parishioners of Camelback Bible Church in Paradise Valley, Arizona, had for several years been searching for a pipe organ to grace their splendid worship space and to provide an anchor for their vibrant music program. They purchased the organ, and it was dismantled and brought to the Fisk workshop.

There it underwent a transformation. A new case, fitting to Camelback Church’s architecture, was designed in collaboration with church member C.P. Drewett, President and Founding Architect of Drewett Works, a Scottsdale, AZ, architecture firm. Working closely with Fisk personnel and acoustician Dana Kirkegaard, Drewett devised a unique and fresh case design that expertly fuses the traditional with the modern, honors the organ’s interior layout, and at the same time appropriately complements the sanctuary architecture.

With regard to its sound, Opus 67 has breathed a huge sigh of relief in its new acoustically resplendent home. Some noteworthy changes were made to the stoplist, including the addition of two full-length 16′ voices to the Pedal – the Prestant and the Trombone. These new 16′ stops add a welcome gravitas to the organ’s sonority. The six largest Prestant pipes are made of solid quarter-sawn oak, and, fronting the Pedal towers, offer a commanding visual impression. In addition, a second 8′ open, built of hammered lead, was added to the Great. The Swell, with its new full-height enclosure and independent rear shades, gave up its feisty Cremona 8′ but gained a milder Dulcian 16′. It is also now home to a Voce Umana 8′, giving the instrument a much-appreciated undulant. Except for the former half-length Pedal Bassoon 16′ (which the Trombone replaced) and the Swell Cremona, all original Huntington pipework remains.

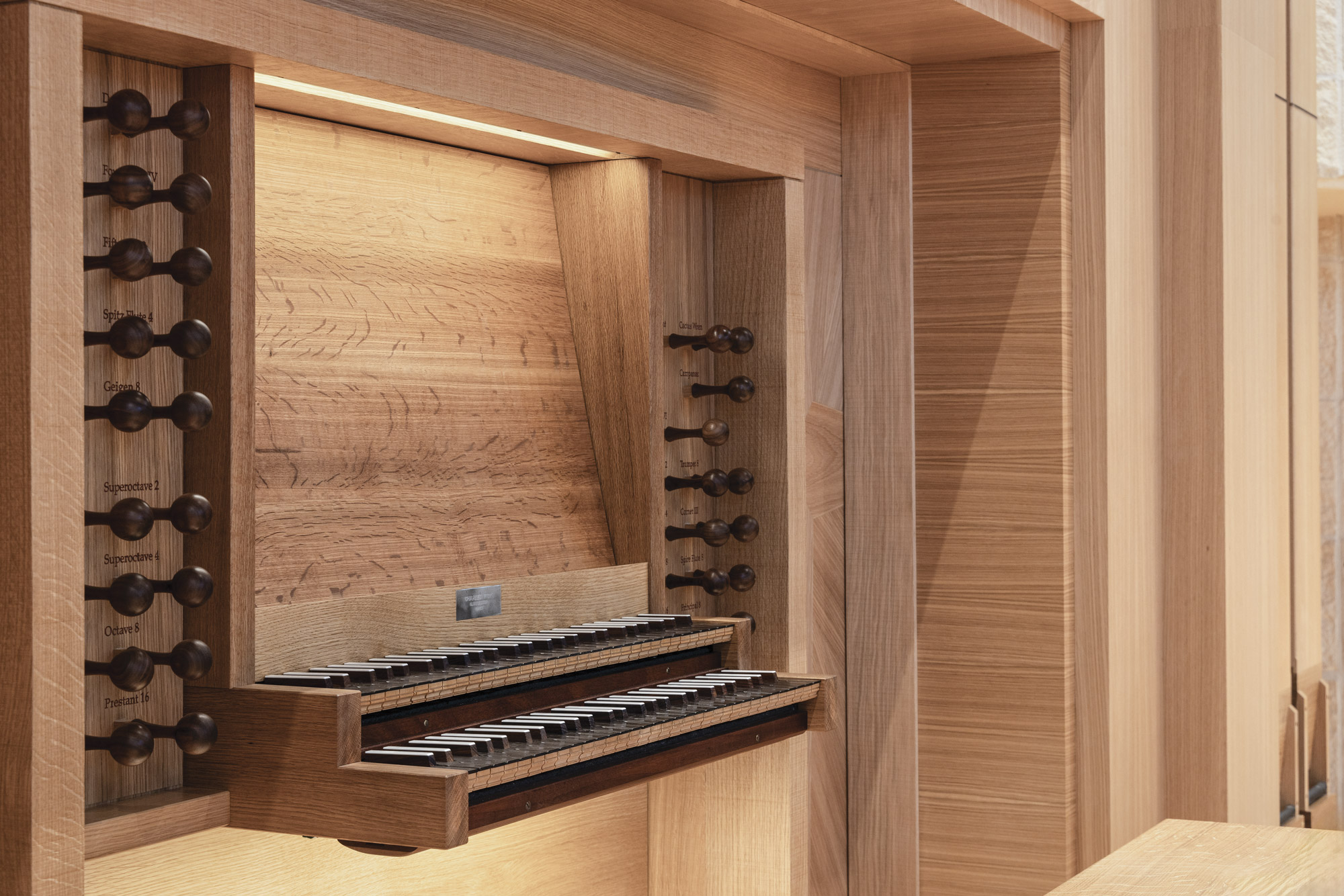

Likewise, the Great and Swell windchests, along with their rollerboards, were retained. Due to the extensive modifications to the Pedal division, new chests and rollerboards were constructed. The console, formerly detached, is now attached to the lower case. The Huntington keyboards, showing very little wear, were kept. All trackers, initially made of 2mm aluminum wire, were replaced with carbon fiber. The stop action remains mechanical but has been rebuilt in its entirety.

Opus 67

Great, Manual I

1. Bourdon 16′
2. *Prestant 8′  façade
3. Principal 8′
4. Spire Flute 8′
5. Octave 4′
6. Doublet 2′
7. Cornet III
8. Mixture IV-VI
9. Trumpet 8′

Swell, Manual II. enclosed

10. Geigen 8′
11. *Voce Umana 8′
12. Chimney Flute 8′
13. Spitz Flute 4′
14. Nasard 2 2/3′
15. Tierce 1 3/5′
16. Fifteenth 2′
17. Fourniture IV
18. *Dulcian 16′
19. Hautboy 8′

Pedal

20. *Prestant 16′
21. Bourdon 16′
22. Octave 8′
23. Principal 8′
24. Superoctave 4′
25. Superoctave 2′
26. *Trombone 16′
27. *Trumpet 8′

*New Stops
†Enclosed within a, heavily-built, full-height Swell box constructed, with full-thickness, solid Swell shades. The Swell box is oufitted with a set of rear shades, controlled by a separate pedal at the console.

Couplers:

Swell to Great
Great to Pedal
Swell to Pedal

Accessories:

Tremulant
Cactus Wren (Rossignol)
Campanas (Cymbelstern)

Mechanical Key Action
Mechanical Stop Action

Manual key compass, 56 notes, CC-g3
Pedal key compass, 30 note, CC-f1

Manual wind pressure, 2 1/4″
Pedal wind pressure, 3″
