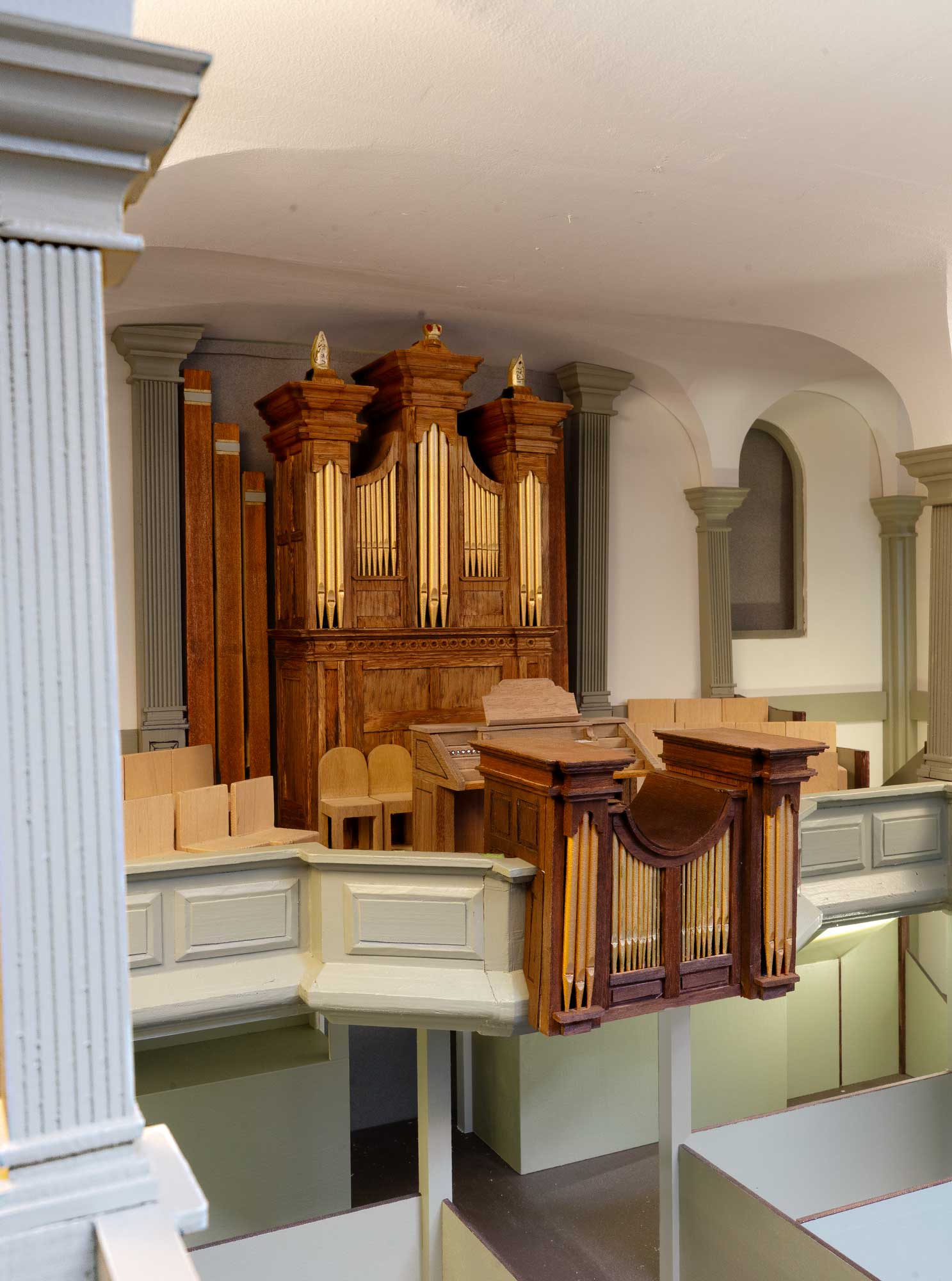

Construction is well underway for a new organ at Newport’s historic Trinity Episcopal Church. The current structure completed in 1726 was originally graced with an organ by the London organbuilder, Richard Bridge. Except for its oak case that instrument was replaced in several iterations between 1846 and 1972. The original casework will be preserved and incorporated into the new organ with the addition of a new Chaire division.
Installation is projected to begin in the fall of 2026 in the midst of the Church’s tricentennial year.
We are proud to contribute to this extraordinary milestone in the long history of Trinity Church.
Great, 61 notes, Manual II
1. Bourdon 16′
2. Open Diapason 8′
3. Stopt Diapason 8′
4. Principal 4′
5. Flute 4′ (preparation)
6. Twelfth 2 ⅔’
7. Fifteenth 2′
8. Seventeenth 1 ⅗’
9. Mixture III-IV (1 ⅓’)
10. Trumpet 8′
Chaire, 61 notes, Manual I
11. Stopt Diapason 8′
12. Principal 4′
13. Chimney Flute 4′
14. Nasard 2 ⅔’
15. Recorder 2′
16. Tierce 1 ⅗’
17. Quint 1 ⅓’
18. Flageolet 1′ (preparation)
19. Cremona 8′
Swell, 61 notes, Manual III
20. Violin Diapason 8′
21. Dulciana 8′
22. Celeste 8′ (t.c.)
23. Clarabella 8′
24. Principal 4′
25. Piccolo 2′
26. Mixture IV (2′)
27. Clarinet 16′
28. Cornopean 8′
29. Hautboy 8′
Pedal, 32 notes
30. Double Diapason 16′
31. Bourdon 16′
32. Octave 8′
33. Flute 8′ ext. No.31
34. Octave 4′ ext. No. 32
35. Trombone 16′
36. Trumpet 8′ ext. No. 35
Chaire to Great
Swell to Great
Swell to Chaire
Great to Pedal
Chaire to Pedal
Swell to Pedal
Swell to Pedal 4′
General Tremulant
Chaire Tremblant doux
Mechanical Key Action
Electric Stop Action
Manual key compass, 61 notes, CC-c4
Pedal key compass, 32 notes, CC-g1
Fisk II temperament
Phone: 978.283.1909
Email: cbfisk@cbfisk.com
Opus 170
Trinity Episcopal Church
Newport, RI
Independent voices: 31
Stops: 34
Created: In progress
