Opus 105

St. Andrew’s Episcopal Church

Tampa, FL

Ranks: 31
Independent Voices: 23
Pipes: 1577
Created: 1994

Print this page

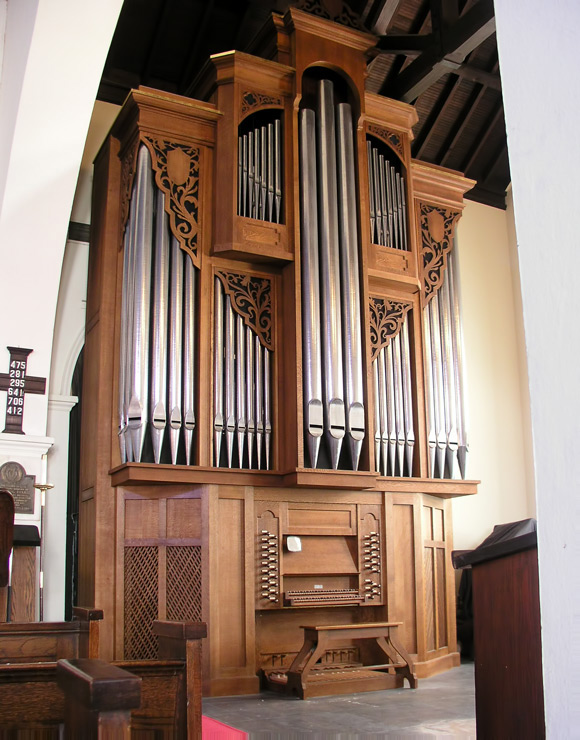

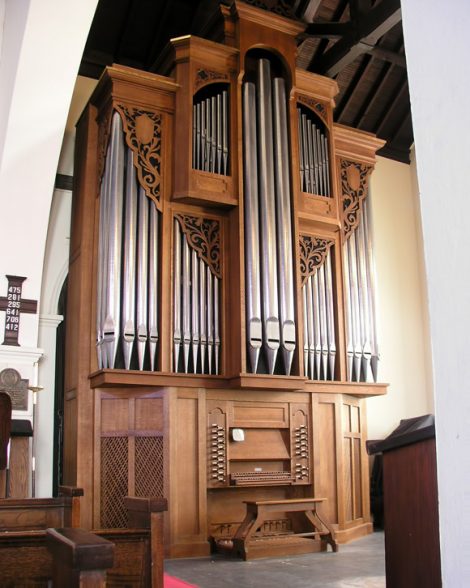

The visual and mechanical design of the organ began in early 1993 with a scale model of the front of the church. On the advice of acoustician Red Wetherill, the church closed off the former organ chamber with a reflective wall. The Great, Swell, and Pedal divisions of the new organ were placed in front of this wall, enabling them to speak boldly into the room.

The eclectic stoplist for a two-manual and pedal organ of twenty-eight stops was developed with organist Carl Klein, and is a blend of the most useful stops of the German, French, English, and American schools of organ building. Following an open house at the Fisk shop and shipment to Tampa, a month-long installation prepared the organ for four months of finish voicing. Each pipe was listened to carefully: alone, within its rank, and finally in combinations of stops. The Principals have generous toeholes, healthy windways with light nicking, and moderate to high cut-ups resulting in a warm, singing fundamental tone. The flutes are voiced more delicately with narrower windways and smaller toeholes for a softer, more elegant sound. The reeds are voiced by carefully curving their brass tongues until maximum tone is produced but speech is still prompt.

The manual divisions are winded from a single large wedge bellows to ensure a unity of breath. In the Fisk tradition, a stopknob may be drawn to engage a wind stabilizer for music requiring a steadier wind supply.

Opus 105

Prestant 16′
Octave 8′
Spillpfeife 8′
Harmonic Flute 8′
Octave 4′
Open Flute 4′ (2014)
   originally Quinte 2 2/3’
Superoctave 2′
Nineteenth 1 1/3′ (2014)
   originally Terz 1 3/5′
Mixture IV-VI
Trommeten 8′

Swell enclosed
Gambe 8′
Céleste 8′
Rohrflöte 8′
Principal 4′ (2014)
originally Italian Principal 4′
Nazard 2 2/3′
Octavin 2′
Tierce 1 3/5′
Mixture III-IV
Dulcian 16′
Trompette 8′
Hautbois 8′

Prestant 16′      GT
Bourdon 16′
Octave 8′ +      GT
Spillpfeife 8′ +      GT
Octave 4′ +      GT
Posaune 16′
Trommeten 8′ +      GT


Swell to Great
Great to Pedal
Swell to Pedal


Wind Stabilizer
Balanced Swell Pedal

+ Alternating stops have 2 knobs, one in the Great and the other in the Pedal and may not be used simultaneously. They may be drawn on the Great and with the Great to Pedal
coupler, they will sound in both places.
Manual keyboards CC-a3, 58 notes
Pedal (flat & parallel) CC-f1, 30 notes
Combination Pedals: Two adjustable pairs of pedals (“On” and “Off”), one pair for stops of the right jamb, one for stops of the left stop jamb. Combinations are changed by rotating the individual knobs.
